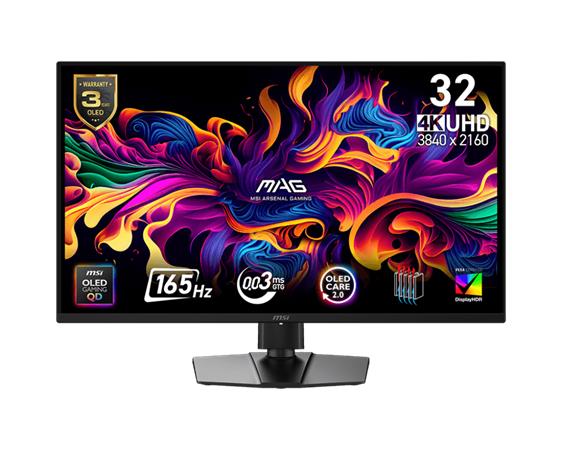

MSI Gaming monitor MAG 322UP QD-OLED E16 31,5" QD-OLED/3840x2160 UHD/165Hz/0,03ms/2xHDMI/DP/USB-C/Výšk.nast./Pivot/černá

MKT Spec MAG 322UP QD-OLED E16
Website Name MAG 322UP QD-OLED E16
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 31.5" (80.01 cm)
Active Display Area (mm) 699.48(H) x 394.73(V)
Curvature Flat
Panel Type QD-OLED
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.1814(H)x0.1814(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~165Hz
HDR (High dynamic range) VESA DisplayHDR True Black 400
SDR Brightness (nits) 250
HDR Brightness (Peak nits) 1000
Contrast Ratio 1500000:1
DCR (Dynamic Contrast Ratio) NA
Signal Frequency 30~390 KHz(H) / 48~165 Hz(V)
Refresh Rate 165HZ
Response Time (MPRT) NA
Response Time (GTG) 0.03ms
Response Time (Tr + Tf) 0.1ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 120.5%/93.8%
NTSC (CIE1931 area percentage/overlap) 103.6%/91.5%
sRGB (CIE1976 area percentage/overlap) 138.2%/100%
sRGB (CIE1931 area percentage/overlap) 146.2%/100%
Adobe RGB (CIE1976 area percentage/overlap) 118.4%/97.5%
Adobe RGB (CIE1931 area percentage/overlap) 108.4%/94%
DCI-P3 (CIE1976 area percentage/overlap) 110.1%/99%
DCI-P3 (CIE1931 area percentage/overlap) 107.8%/98.4%
Rec.709 (CIE1976 area percentage/overlap) 138.2%/100%
Rec.709 (CIE1931 area percentage/overlap) 146.2%/100%
Rec.2020 (CIE1976 area percentage/overlap) 80.2%/80.2%
Rec.2020 (CIE1931 area percentage/overlap) 77.3%/77.3%
Quantum Dot Film NA
Surface Treatment Anti-Reflection
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 3840 x 2160 (Up to 165Hz)
Note_HDMI 3840 x 2160 (Up to 165Hz)
Note_DVI N/A
VESA DisplayHDR VESA DisplayHDR 400
VESA ClearMR VESA ClearMR 3000
Delta E Delta E ? 2 (Pre-Calibration)
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country EU
Territory N/A
Entity N/A
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) TBD
Annual Energy Consumption (KWh) TBD
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -10° ~ 10°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method Toolless locking
Stand Type 4-way Ergonomic (Tilt + Lift + Swivel + Pivot)
Stand with Integrated Mini PC Mount NA
KVM Version NA
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display Support
AI Gaming Support
MSI OLED Care 3.0
Scaler FW Update Update by Gaming Intelligence (USB + DP)
Carton
Carton Item (SG14) SG14-M1S249A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 14
Q'ty/20cy (by air) pcs 140
Q'ty/40cy (by air) pcs 294
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1362
Net Weight (by air) kg TBD
Gross Weight (by air) kg TBD
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2200
Net Weight (by sea) kg TBD
Gross Weight (by sea) kg TBD
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 719.1 x 241.9 x 593.9
Product Dimension with Stand (WxDxH) (inch) 28.31 x 9.52 x 23.38
Product Dimension without Stand (WxDxH) (mm) 719.1 x 69.3 x 418.3
Product Dimension without Stand (WxDxH) (inch) 28.31 x 2.73 x 16.47
Stand Dimension (WxDxH) (mm) 308.7 x 241.9 x 432.1
Stand Dimension (WxDxH) (inch) 12.15 x 9.52 x 17.01
Weight (Net kg) 7.7
Weight (Net lbs) 16.98
Weight Without Stand (kg) 5
Weight Without Stand (lbs) 11.02
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 93.5 x 18.5 x 51.3
Inside Carton Dimension (WxDxH) (inch) 36.81 x 7.28 x 20.2
Outer Carton Dimension (WxDxH) (cm) 95 x 19.8 x 53.8
Outer Carton Dimension (WxDxH) (inch) 37.4 x 7.8 x 21.18
Weight (Gross kg) 12.34
Weight (Gross lbs) 27.21
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4
HDMI Cable 0
HDMI Cable Version NA
DVI Cable 0
DVI Cable Version NA
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name OLED
Segment Name MAG
Segment Name2 MAG 322U E16
Segment Name3 MAG 322UP QD-OLED E16
Barcode Info
EAN 4711377319652
