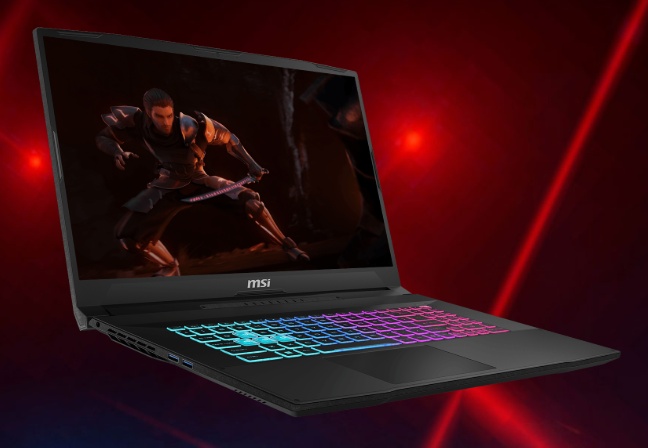

MSI Katana 17 HX B14WGK-026CZ/i7-14650HX/16GB/1TB SSD/RTX 5070, 8GB/17,3"FHD IPS 144Hz/Win 11 home/černá

Part No 9S7-17L791-026
SKU Number
Website Name Katana 17 HX B14WGK
Platform N/A
Series Name Gaming
Segment Name Katana
Model 17L7
MKT Name Katana 17 HX B14WGK
Entity MKT Name
MKT Spec Katana 17 HX B14WGK-026CZ
Chassis Color
Color ID9(BB)/Black-Black-Black-Black
Color_Website Black
Chassis Material
A Side N/A
B Side N/A
C Side N/A
D Side N/A
Display
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 144Hz
Response Time Tr+Tf 25ms
Color Range 45%
Screen Size_Website 17.3"
Pixel_Website FHD(1920x1080)
Frame Rate_Website 144Hz Refresh Rate
Color Range_Website N/A
Display Type_Website IPS-Level
Peak Brightness (HDR Value) N/A
Touch Feature_Website N/A
Typical Brightness 250 nits,IPS-level/FLAT TYPE/250nit/AMD FREE-SYNC/FOR MS-17UL
Typical Brightness Remark *250nit is not recommended to highlight
CPU
CPU Type N/A
CPU Core Name RAPTOR LAKE HX REFRESH
CPU Socket N/A
CPU Number i7-14650HX
CPU Basic Clock 2.2GHz
CPU Cores 16
NPU TOPS
CPU Core Name_Website N/A
CPU Number_Website Intel® Core™ i7 processor 14650HX
CPU Number_Website For GC Intel® Core™ i7 processor 14650HX
CPU Specification_Website 16 cores (8 P-cores + 8 E-cores), Max Turbo Frequency 5.2 GHz
Chipset
Chipset SoC_Website Intel® HM770
Discrete Graphics
GPU1 MKT Name GeForce RTX 5070
GPU1 Number RTX 5070
GPU1 MKT Name_Website GeForce RTX 5070
GPU1 Boost Clock_Website N/A
GPU1 Remark_Website N/A
CPU and GPU Combined Power
Combined Power_Website N/A
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website N/A
Cooling
Thermal N/A
Fan N/A
Fan Technology N/A
Pipe N/A
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 8GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website Intel® UHD Graphics
Memory
Memory Size 8GB*2
Memory Module DDR5-5600
Memory(Slot) Max Speed N/A
Memory Form N/A
Memory Remark_Website N/A
Memory Slot and Max Capacity
Memory Max Speed N/A
Memory Slot N/A
Memory Max Capacity_Website N/A
Storage
SSD Form Factor M.2-2280 M-KEY
SSD Size 1TB*1
SSD Interface NVMe SSD PCIe Gen4
SSD 2 Size N/A
SSD 2 Interface N/A
2.5" HDD_Website N/A
SSD Remark N/A
Storage Slot
SSD (NVMe PCIe Gen)_Website N/A
HDD_Website N/A
Max Storage Capacity
LAN
LAN_Website Gigabit Ethernet
LAN REALTEK/RTL8111H-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN/BT INTEL/AX211.NGWG.NV
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DisplayPort™) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ 4 (DisplayPort™) N/A
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible) N/A
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) N/A
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.1 Gen1 / DisplayPort™) N/A
Type-C (USB3.2 Gen1 / DisplayPort™) N/A
Type-C USB3.1 Gen2 N/A
Type-C USB3.2 Gen2 N/A
Type-C USB3.2 Gen2 with PD charging N/A
Type-C USB3.1 Gen1 N/A
Type-C USB3.2 Gen1 N/A
Type-A USB3.1 Gen1 N/A
Type-A USB3.2 Gen1 N/A
Type-A USB3.1 Gen2 N/A
Type-A USB3.2 Gen2 N/A
Type-C USB3.2 Gen2x2 N/A
Type-A USB2.0 N/A
USB3.2 Gen 2 Type-C(connect to computer) N/A
Card Reader
CardReader N/A
Smart Card Reader N/A
Video Ports
HDMI™ N/A
DisplayPort N/A
Mini Display Port N/A
Keyboard
Keyboard Types_Website N/A
Keyboard Keys 99KEYS
Key Travel
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard  Language CS Wleft Nokr
Touchpad
Touchpad N/A
WebCam
WebCam N/A
Webcam Feature N/A
Audio Port
Audio Jack_Website N/A
Audio
Audio Speaker N/A
Audio Woofer N/A
Audio Mic N/A
Audio Solution_Website N/A
AC Adapter
Adaptor 240W
Adaptor Input 90-264V
Adaptor Unit Weight (g) 570
Power Cord Unit Weight (g) 195
Power Cord Type EU
Battery
Battery Type 4CELLS/4S1P
Battery Cell_Website N/A
Whrs 75 Whrs
Mah 4850 Mah
Battery Unit Weight (g) 273
Battery Life
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS_Website Windows 11 Home (MSI recommends Windows 11 Pro for business.)
Copilot+ PC Certified N/A
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension N/A
Dimension(Inches)_Website N/A
Weight (W/ Battery)
Weight N/A
Weight(lbs)_Website N/A
Security
Security Type_Website N/A
Certification
Certification Type_Website N/A
Sustainability
EPEAT_Website N/A
Sensor
Fingerprint
Fingerprint_Website N/A
Fingerprint (Optional) N/A
Ambient Light Sensor_Website N/A
Gyroscope_Website N/A
Accelerometer_Website N/A
Magnetometer_Website N/A
Proximity Sensor N/A
NFC N/A
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Xbox Game Pass
Xbox Game Pass One month of PC Game Pass
Xbox Game Pass Remark *Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.
Accessory
Extra Bag N/A
Extra Mouse N/A
Remark
Remark 1_Website
Software
Software N/A
Model Info
Segment Name2 Katana17HXB
Segment Name Katana
Series Name Gaming
Segment Name3 Katana 17 HX B14WGK
Extra Info
EOL Date
Barcode Info
UCC14
UPC
JAN
EAN 4711377345651
