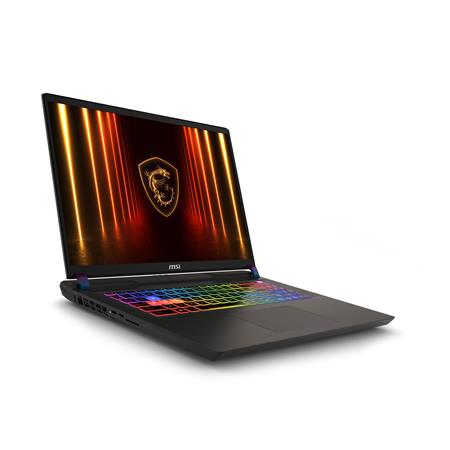

MSI Vector 17 HX AI A2XWJG-031CZ/Core Ultra 9 275HX/32GB/2TB/RTX 5090, 24GB/17" QHD+240Hz/Win11 Home

Part No 9S7-17S372-031
SKU Number
Website Name Vector 17 HX AI A2XWJG
Brand MSI
Platform INTEL
Series Name Gaming
Segment Name Vector
Segment Name2 Vector17HXAIA
Segment Name3 Vector17HXAI A2XWJG
Model 17S3
MKT Name Vector 17 HX AI A2XWJG
Entity MKT Name
MKT Spec Vector 17 HX AI A2XWJG-031CZ
System/Barebone System
Chassis Color
Color ID7(GG)/Cosmos_Gray-Black-Cosmos_Gray-Cosmos_Gray
Color_Website Cosmos Gray
Chassis Material
A Side Metal
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size 17
Resolution IPS-Level QHD+
Pixel 2560x1600
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 240Hz
Response Time G to G 3ms
Color Range 100% DCI-P3
Screen Size_Website 17"
Pixel_Website QHD+(2560x1600)
Frame Rate_Website 240Hz Refresh Rate
Color Range_Website 100% DCI-P3(Typical)
Display Type_Website IPS-Level
HDR Value N/A
Touch Feature_Website NA
Brightness 400 nits
CPU
CPU Type 24 CORE
CPU Core Name ARROW LAKE
CPU Socket FCBGA-2114pin
CPU Number Core Ultra 9 275HX
CPU Clock 2.7GHz
CPU Cores 24
CPU Core Name_Website N/A
CPU Number_Website Intel® Core™ Ultra 9 processor 275HX with Intel® AI Boost (NPU)
CPU Number_Website For GC Intel® Core™ Ultra 9 processor 275HX with Intel® AI Boost (NPU)
CPU Specification_Website 24 cores (8 P-cores + 16 E-cores), 24 thread, 40MB cache, Max Turbo Frequency 5.4 GHz
Chipset
Chipsets HM870
Chipset SoC_Website Intel® HM870
Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX5090
GPU1 Number RTX 5090
GPU1 MKT Name_Website NVIDIA® GeForce RTX™ 5090 Laptop GPU powers advanced AI with 1824 AI TOPS
GPU1 Boost Clock_Website Up to 2160MHz Boost Clock 175W Maximum Graphics Power with Dynamic Boost. *May vary by scenario
GPU1 Remark_Website NA
CPU and GPU Combined Power
Combined Power_Website Max. 250W CPU-GPU Power with MSI OverBoost Ultra Technology.
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website NA
Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology N/A
Pipe 6
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 24GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website Intel® Graphics
Memory
Memory Size 16GB*2
Memory Module DDR5-5600
Memory(Slot) Max Speed Up to DDR5-6400
Memory Form N/A
Memory Remark_Website *The actual frequency will vary by memory combination and CPU capability.
Memory Slot and Max Capacity
Memory Max Speed Up to DDR5-6400
Memory Slot 2 Slots
Memory Max Capacity_Website Max 96GB
Storage
SSD Form Factor M.2-2280 M-KEY
SSD Size 2TB*1
SSD Interface NVMe SSD PCIe Gen4
HDD1 Interface N/A
HDD1 Form Factor N/A
SSD Gen_Website NVMe SSD PCIe Gen4
Multi Bay N/A
2.5" HDD_Website N/A
SSD Remark ”Please consult service center for upgrading SSD.”
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible
HDD_Website N/A
LAN
LAN_Website 2.5 Gigabit Ethernet
LAN REALTEK/RTL8125BG-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Killer™ Wi-Fi 7 BE1750, Bluetooth v5.4
WLAN Version Wi-Fi 7+BT
WLAN/BT INTEL/BE200.NGWG.NVX
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging NA
Type-C (USB3.2 Gen2 / DisplayPort™) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) NA
Thunderbolt™ 4 (DisplayPort™) NA
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) 2x
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible) NA
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) NA
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB3.1 Gen1 / DisplayPort™) NA
Type-C (USB3.2 Gen1 / DisplayPort™) NA
Type-C USB3.1 Gen2 NA
Type-C USB3.2 Gen2 NA
Type-C USB3.2 Gen2 with PD charging NA
Type-C USB3.1 Gen1 NA
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 NA
Type-A USB3.2 Gen1 NA
Type-A USB3.1 Gen1/ QC3.0 NA
Type-A USB3.2 Gen1/ QC3.0 NA
Type-A USB3.1 Gen2 NA
Type-A USB3.2 Gen2 2x
Type-C USB3.2 Gen2x2 NA
Type-A USB3.1 NA
Type-C USB3.0 N/A
Type-A USB3.0 NA
Type-A USB2.0 NA
USB3.2 Gen 2 Type-C(connect to computer) NA
Card Reader
CardReader 1x SD Express
Smart Card Reader NA
Video Ports
VGA Out NA
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port NA
Keyboard
Keyboard Types_Website 24-Zone RGB Gaming Keyboard with Copilot Key
Keyboard Keys 99KEYS
Keyboard Backlit Y
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard  Language CS Wleft Nokr
Touchpad
Touchpad Silky Smooth Touchpad
WebCam
WebCam IR FHD type (30fps@1080p) with HDR
Webcam Feature 3D Noise Reduction+ (3DNR+)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic Array Microphone
Audio Solution_Website Nahimic 3 Audio Enhancer, Hi-Res Audio Ready
AC Adapter
Adaptor Output 330W adapter
Adaptor 330W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 1050
Power Cord Unit Weight (g) 195
Battery
Battery Type 4CELLS/4S1P
Battery Cell_Website 4-Cell
Whrs 90 Whrs
Mah 5845 Mah
Battery Unit Weight (g) 367.8
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA
OS_Website Windows 11 Home (MSI recommends Windows 11 Pro for business.)
Copilot+ PC Certified N/A
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 380.34 x 297.97 x 22.85-28.75 mm
Dimension(Inches)_Website 14.97" x 11.73" x 0.9-1.13"
Weight (W/ Battery)
Weight 3 kg
Weight(lbs)_Website 6.61 lbs
Security
Security Type_Website "Firmware Trusted Platform Module(fTPM) 2.0
Webcam Shutter
Kensington Lock"
Certification
Certification Type_Website Meta Ready
Sustainability
EPEAT_Website N/A
Sensor
Fingerprint_Website NA
Fingerprint (Optional) NA
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Xbox Game Pass
Xbox Game Pass One month of PC Game Pass
Xbox Game Pass Remark *Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.
Software Killer Control Center, Nvidia App, Nahimic 3, MSI App Player, Mystic Light, MSI Center, Discrete Graphics Mode, MSI AI Engine, AI Noise Cancellation Pro
EAN 4711377326582
