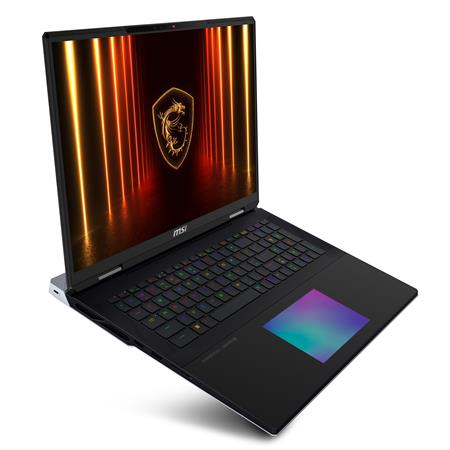

MSI Titan 18 HX AI A2XWJG-224CZ /Core Ultra 9 285HX/96GB/4TB/RTX 5090, 24GB/16" UHD+120Hz/Win11 Pro

Part No 9S7-182421-224
SKU Number
Website Name Titan 18 HX AI A2XWJG
Brand MSI
Platform INTEL
Series Name Gaming
Segment Name Titan
Segment Name2 Titan18HXAIA
Segment Name3 Titan18HXAI A2XWJG
Model 1824
MKT Name Titan 18 HX AI A2XWJG
Entity MKT Name
MKT Spec Titan 18 HX AI A2XWJG-224CZ
System/Barebone System
Chassis Color
Color ID2(BG)/Core_Black-Black-Midnight_Black-Glacier_Gray

Chassis Material
A Side Metal
B Side Plastic
C Side Metal (MgAl)
D Side Metal
Display
Screen Size 18
Resolution UHD+
Pixel 3840x2400
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 120Hz
Response Time G to G 3ms
Color Range 100% DCI

HDR Value VESA DisplayHDR™ 1000 Certified

Brightness N/A
CPU
CPU Type 24 CORE
CPU Core Name ARROW LAKE
CPU Socket FCBGA-2114pin
CPU Number Core Ultra 9 285HX
CPU Clock 2.8GHz
CPU Cores 24

Chipset
Chipsets HM870

Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX5090
GPU1 Number RTX 5090

CPU and GPU Combined Power
Combined Power_Website Max. 270W CPU-GPU Power with MSI OverBoost Ultra Technology

Cooling
Thermal Vapor Chamber Cooler
Fan 2
Fan Technology NA
Pipe NA
Vapor Chamber Yes
Video Memory
GPU1 VRAM Size 24GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website Intel® Graphics
Memory
Memory Size 48GB*2
Memory Module DDR5-6400
Memory(Slot) Max Speed Up to DDR5-6400
Memory Form NA

Memory Slot and Max Capacity
Memory Max Speed Up to DDR5-6400
Memory Slot 2 Slots

Storage
SSD Interface PCIe GEN5x4 w/o DRAM NVMe,PCIe GEN4x4 NVMe
SSD Form Factor M.2 2280 M-KEY,M.2-2280 M-KEY
SSD Size 2TB*1,2TB*1

HDD1 Interface N/A
HDD1 Form Factor N/A
HDD size N/A
HDD1 RPM N/A
ODD Type N/A
Multi Bay N/A

SSD Remark N/A
Storage Slot
SSD (NVMe PCIe Gen)_Website 3x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible

LAN
LAN_Website 2.5 Gigabit Ethernet
LAN REALTEK/RTL8125BG-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Killer™ Wi-Fi 7 BE1750, Bluetooth v5.4
WLAN Version Wi-Fi 7+BT
WLAN/BT INTEL/BE200.NGWG.NVX
I/O Ports
Audio Line In N/A
Audio Line Out N/A
Digital out SPDIF N/A
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DisplayPort™) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ 4 (DisplayPort™) N/A
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) 2x
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible) N/A
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) N/A
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.1 Gen1 / DisplayPort™) N/A
Type-C (USB3.2 Gen1 / DisplayPort™) N/A
Type-C USB3.1 Gen2 N/A
Type-C USB3.2 Gen2 N/A
Type-C USB3.2 Gen2 with PD charging N/A
Type-C USB3.1 Gen1 N/A
Type-C USB3.2 Gen1 N/A
Type-A USB3.1 Gen1 N/A
Type-A USB3.2 Gen1 N/A
Type-A USB3.1 Gen1/ QC3.0 N/A
Type-A USB3.2 Gen1/ QC3.0 N/A
Type-A USB3.1 Gen2 N/A
Type-A USB3.2 Gen2 3x
Type-C USB3.2 Gen2x2 N/A
Type-A USB3.1 N/A
Type-C USB3.0 N/A
Type-A USB3.0 N/A
Type-A USB2.0 N/A
USB3.2 Gen 2 Type-C(connect to computer) N/A
Card Reader
CardReader 1x SD Express
Smart Card Reader N/A
Video Ports
VGA Out N/A
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort N/A
Mini Display Port N/A
Keyboard
Keyboard Types_Website Cherry Mechanical Per-Key RGB Gaming Keyboard by SteelSeries with Copilot Key
Keyboard Keys 102KEYS
Keyboard Backlit Y
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard Language CS Wleft Nokr
Touchpad
Touchpad RGB Haptic Touchpad
WebCam
WebCam IR FHD type (30fps@1080p) with HDR
Webcam Feature 3D Noise Reduction+ (3DNR+)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 4x 2W
Audio Woofer 2x 2W
Audio Mic Array Microphone

AC Adapter
Adaptor Output 400W adapter
Adaptor 400W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 1300
Power Cord Unit Weight (g) 195
Battery
Battery Type 4CELLS/4S1P

Whrs 99.9 Whrs
Mah 6578 Mah
Battery Unit Weight (g) 400
Operating Systems
OS PROFESSIONAL(WIN 11 PRO HIGH-END OLC OA3)
OS Type W11PH

Copilot+ PC Certified NA
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 404 x 307.5 x 24-32.05 m

Weight (W/ Battery)
Weight 3.6 kg

Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Secured-core PCs, Kensington Lock
Certification
Certification Type_Website N/A
Sustainability
EPEAT_Website N/A
Sensor
Fingerprint_Website NA
Fingerprint (Optional) NA

Proximity Sensor NA
NFC (Optional) NA
Warranty
Warranty 24M

Xbox Game Pass
Xbox Game Pass One month of PC Game Pass
Xbox Game Pass Remark *Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.
Accessory
Accessory_Website
Extra Bag N/A
Extra Mouse WIRELESS
Remark
I/O Ports Remark N/A
Software
Software True Color, Nahimic 3, MSI App Player, MSI Center, Steelseries GG, Discrete Graphics Mode, MSI AI Engine, AI Noise Cancellation Pro
Model Info
Series Name Gaming
Segment Name Titan
Segment Name2 Titan18HXAIA
Segment Name3 Titan18HXAI A2XWJG
Barcode Info
EAN 4711377310437
