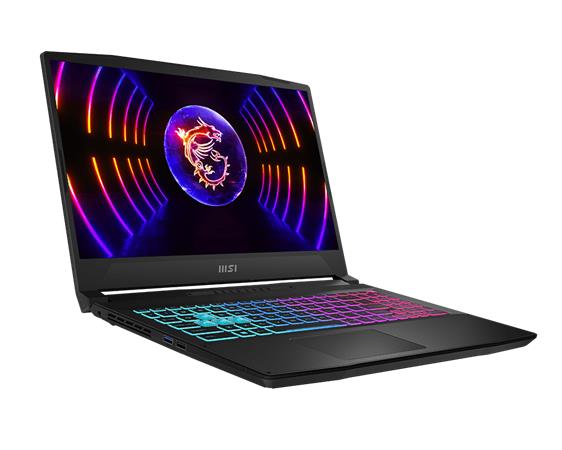

MSI Katana 15 B13VFK-2299CZ /i7 13620H/32GB/1TB/RTX 4060, 8GB/15,6" FHD, 144Hz/Win11home

MKT Spec Katana 15 B13VFK-2299CZ
System/Barebone System
Chassis Color
Color ID7(BB)/Black-Black-Black-Black

Chassis Material
A Side Plastic
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size 15.6
Resolution IPS-Level FHD
Pixel 1920x1080
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 144Hz
Response Time Tr+Tf 25ms
Color Range 45%

HDR Value N/A

Brightness N/A
CPU
CPU Type 10 CORE
CPU Core Name RAPTOR LAKE
CPU Socket FCBGA-1744pin
CPU Number i7-13620H
CPU Clock 2.4GHz
CPU Cores 10

Chipset
Chipsets N/A

Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 4060
GPU1 Number RTX 4060

CPU and GPU Combined Power
Combined Power_Website N/A

Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology N/A
Pipe 6
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 8GB
GPU1 VRAM Type GDDR6
Integrated Graphics
GPU1 Graphics_Website Intel® UHD Graphics
Memory
Memory Size 16GB*2
Memory Module DDR5-5600
Memory(Slot) Max Speed DDR5-5200
Memory Form N/A

Memory Slot and Max Capacity
Memory Max Speed DDR5-5200
Memory Slot 2 Slots

Storage
SSD Interface PCIe GEN4x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-Key
SSD Size 1TB*1
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD size N/A
HDD1 RPM N/A
ODD Type N/A
Multi Bay N/A

SSD Remark "Please consult service center for upgrading SSD."
Storage Slot
SSD (NVMe PCIe Gen)_Website 2x M.2 SSD slot (NVMe PCIe Gen4)

LAN
LAN_Website Gigabit Ethernet
LAN REALTEK/RTL8111H-VB-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN Version Wi-Fi 6E+BT
WLAN/BT INTEL/AX211.NGWG.NV
I/O Ports
Audio Line In N/A
Audio Line Out N/A
Digital out SPDIF N/A
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DisplayPort™) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ 4 (DisplayPort™) N/A
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible)
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) N/A
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0)
Type-C (USB3.1 Gen1 / DisplayPort™) NA
Type-C (USB3.2 Gen1 / DisplayPort™) 1x
Type-C USB3.1 Gen2 N/A
Type-C USB3.2 Gen2 N/A
Type-C USB3.2 Gen2 with PD charging N/A
Type-C USB3.1 Gen1 N/A
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 N/A
Type-A USB3.2 Gen1 2x
Type-A USB3.1 Gen1/ QC3.0 N/A
Type-A USB3.2 Gen1/ QC3.0 N/A
Type-A USB3.1 Gen2 N/A
Type-A USB3.2 Gen2 N/A
Type-C USB3.2 Gen2x2 N/A
Type-A USB3.1 N/A
Type-C USB3.0 N/A
Type-A USB3.0 N/A
Type-A USB2.0 1x
USB3.2 Gen 2 Type-C(connect to computer) N/A
Card Reader
CardReader N/A
Smart Card Reader N/A
Video Ports
VGA Out N/A
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port N/A
Keyboard
Keyboard Types_Website 4-Zone RGB Gaming Keyboard
Keyboard Keys 99KEYS
Keyboard Backlit Y
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard Language CS Wleft Nokr
Touchpad
Touchpad NA
WebCam
WebCam HD type (30fps@720p)
Webcam Feature N/A
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic N/A

AC Adapter
Adaptor Output 200W adapter
Adaptor 200W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 630
Power Cord Unit Weight (g) 126
Battery
Battery Type 3CELLS/3S1P

Whrs 53.5 Whrs
Mah 4700 Mah
Battery Unit Weight (g) 211
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA

Copilot+ PC Certified N/A
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 359 x 259 x 24.9 mm

Weight (W/ Battery)
Weight 2.25 kk

Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0
Certification
Certification Type_Website Meta Ready
Sustainability
EPEAT_Website N/A
Sensor
Fingerprint_Website N/A
Fingerprint (Optional) N/A

Proximity Sensor N/A
NFC (Optional) N/A
Warranty
Warranty 24M

Xbox Game Pass
Xbox Game Pass One month of PC Game Pass
Xbox Game Pass Remark *Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.
Accessory
Accessory_Website
Extra Bag N/A
Extra Mouse N/A
Remark
I/O Ports Remark N/A
Software
Software Nvidia App, Nahimic 3, Gaming Mode, MSI App Player, Mystic Light, Game Highlights, MSI Companion, Crosshair, Battery Master, MSI Center, Animaze, Ambient Silent AI, Smart Auto
Model Info
Series Name Gaming
Segment Name Katana
Segment Name2 Katana15B
Segment Name3 Katana15 B13VFK
Barcode Info
EAN 4711377310352
