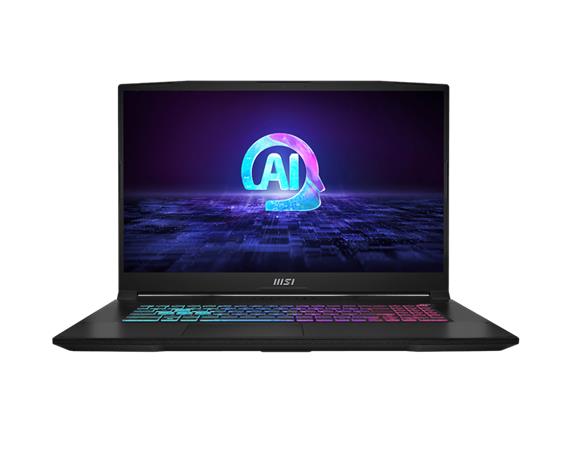

MSI Katana A17 AI B8VF-887XCZ/Ryzen 9 8945HS/32GB/1TB SSD/RTX 4060 , 8GB/17,3"QHD IPS 240Hz/Bez OS

Part No 9S7-17LN31-887
SKU Number
Website Name Katana A17 AI B8VF
Brand MSI
Platform AMD
Series Name Gaming
Segment Name Katana A
Segment Name2 KatanaA17AIB
Segment Name3 KatanaA17AI B8VF
Model 17LN
MKT Name Katana A17 AI B8VF
Entity MKT Name
MKT Spec Katana A17 AI B8VF-887XCZ
System/Barebone System
Chassis Color
Color ID3(BB)/Black-Black-Black-Black
Color_Website Black
Chassis Material
A Side Plastic
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size 17.3
Resolution IPS-Level QHD
Pixel 2560x1440
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate N/A
Response Time Tr+Tf 9ms
Color Range N/A
Screen Size_Website 17.3"
Pixel_Website QHD(2560x1440)
Frame Rate_Website 240Hz Refresh Rate
Color Range_Website 100% DCI-P3(Typical)
Display Type_Website IPS-Level
HDR Value N/A
Touch Feature_Website NA
CPU
CPU Type 8 CORE
CPU Core Name Ryzen 9
CPU Socket BGA-1140pin
CPU Number Ryzen 9 8945HS
CPU Clock 4GHz
CPU Cores 8
CPU Core Name_Website AMD
CPU Number_Website Ryzen™ 9 8945HS Processor with AMD XDNA™ architecture
CPU Specification_Website 8 cores, Max Boost Clock 5.2 GHz
Chipset
Chipsets N/A
Chipset SoC_Website Integrated SoC
Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 4060
GPU1 Number RTX 4060
GPU1 MKT Name_Website NVIDIA® GeForce RTX™ 4060 Laptop GPU
GPU1 Boost Clock_Website Up to 2250MHz Boost Clock 105W Maximum Graphics Power with Dynamic Boost. *May vary by scenario
GPU1 Remark_Website N/A
CPU and GPU Combined Power
Combined Power_Website N/A
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website N/A
Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology
Pipe 6
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 8GB
GPU1 VRAM Type GDDR6
Integrated Graphics
GPU1 Graphics_Website AMD Radeon™ 780M
Memory
Memory Size 16GB*2
Memory Type DDR5-5600
Memory Form
Memory Speed 2800(5600)MHz
Memory Remark_Website N/A
Memory Slot and Max Capacity
Memory Slot 2 Slots
Memory Max Capacity_Website Max 64GB
Storage
SSD Interface PCIe GEN4x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-Key
SSD Size 1TB*1
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD size N/A
HDD1 RPM N/A
ODD Type N/A
Multi Bay N/A
SSD Gen_Website NVMe SSD PCIe Gen4
2.5" HDD_Website N/A
SSD Remark "Please consult service center for upgrading SSD."
Storage Slot
SSD (NVMe PCIe Gen)_Website 2x M.2 SSD slot (NVMe PCIe Gen4)
HDD_Website NA
Communications
Accessory Lan_Website Gb LAN
LAN
LAN_Website Gigabit Ethernet
LAN REALTEK/RTL8111H-VB-CG
Wi-Fi/ Bluetooth
WLAN/BT_Website AMD RZ616 Wi-Fi 6E, Bluetooth v5.3
WLAN Version Wi-Fi 6E+BT
WLAN/BT AMD/RZ616
I/O Ports
Audio Line In N/A
Audio Line Out N/A
Digital out SPDIF N/A
RJ45 1x
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) N/A
Type-C (USB / DP / Thunderbolt™ 4) with PD charging N/A
Type-C (USB / DP / Thunderbolt™ 4) with PD3.1 charging N/A
Type-C (USB / DP / Thunderbolt™ 4) N/A
Type-C (USB / DP / Thunderbolt™) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) with PD3.1 charging N/A
Type-C (USB3.1 Gen1 / DP) NA
Type-C (USB3.2 Gen1 / DP) 1x
Type-C USB3.1 Gen2 N/A
Type-C USB3.2 Gen2 N/A
Type-C USB3.2 Gen2 with PD charging N/A
Type-C USB3.1 Gen1 N/A
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 N/A
Type-A USB3.2 Gen1 2x
Type-A USB3.1 Gen1/ QC3.0 N/A
Type-A USB3.2 Gen1/ QC3.0 N/A
Type-A USB3.1 Gen2 N/A
Type-A USB3.2 Gen2 N/A
Type-C USB3.2 Gen2x2 N/A
Type-A USB3.1 N/A
Type-C USB3.0 N/A
Type-A USB3.0 N/A
Type-A USB2.0 1x
USB3.2 Gen 2 Type-C(connect to computer) N/A
Card Reader
CardReader N/A
Smart Card Reader N/A
Video Ports
VGA Out N/A
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port N/A
Keyboard
Keyboard Types_Website 4-Zone RGB Gaming Keyboard with Copilot Key
Keyboard Keys 99KEYS
Keyboard Backlit Y
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard Language CS Wleft Nokr
Touchpad
Touchpad NA
WebCam
WebCam HD type (30fps@720p)
Webcam Feature N/A
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic N/A
Audio Solution_Website Nahimic 3 Audio Enhancer, Hi-Res Audio Ready
AC Adapter
Adaptor Output 200W adapter
Adaptor 200W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 630
Power Cord Unit Weight (g) 126
Battery
Battery Type 3CELLS/3S1P
Battery Cell_Website 3-Cell
Whrs 53.5 Whrs
Mah 4700 Mah
Battery Unit Weight (g) 214
Operating Systems
OS N/A
OS Type Free DOS
OS_Website Free Dos
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 398 x 273 x 25.2 mm
Dimension(Inches)_Website 15.67" x 10.75" x 0.99"
Weight (W/ Battery)
Weight 2.7 kg
Weight(lbs)_Website 5.95 lbs
Weight (Docking) N/A
Weight (lbs Docking)_Website N/A
Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0
Certification
Certification Type_Website N/A
Sustainability
EPEAT_Website
Sensor
Fingerprint_Website N/A
Fingerprint (Optional) N/A
Ambient Light Sensor_Website N/A
Gyroscope_Website N/A
Accelerometer_Website N/A
Magnetometer_Website N/A
Proximity Sensor N/A
NFC (Optional) N/A
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Xbox Game Pass
Xbox Game Pass N/A
Xbox Game Pass Remark N/A
Accessory
Accessory_Website
Extra Bag N/A
Extra Mouse N/A
Remark
I/O Ports Remark N/A
Remark 1_Website
Remark 2_Website
Remark 3_Website
Remark 4_Website
Remark 5_Website
Software
Software Nvidia GeForce Experience, Nahimic 3, MSI App Player, Game Highlights, MSI Companion, Crosshair, Battery Master, MSI Center, Discrete Graphics Mode, MSI AI Engine, AMD Radeon Software, Microsoft Effect Pack (MEP)
Model Info
Series Name Gaming
Segment Name Katana A
Segment Name2 KatanaA17AIB
Segment Name3 KatanaA17AI B8VF
Barcode Info
EAN 4711377227605
