IPS;1920*1080 100Hz  6ms height adjust

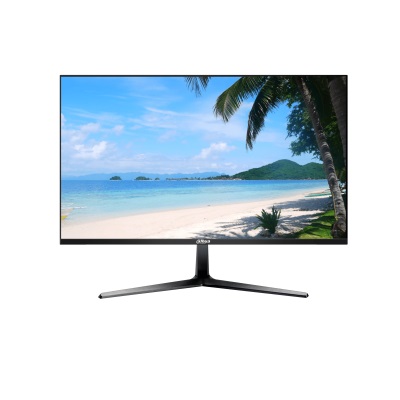

Dahua 21.45" FHD Commercial Monitor
A wide view of 178° (H) and 178° (V).
Supports HDMI and VGA signal input.
The anti-blue light feature protects your eyes from injury.
Elegant design with a thin frame and metal base.

Model
DHI-LM22-B201S

LCD Technology
IPS

Backlight
ELED

Screen Size
21.45 inch

Aspect Ratio
16:9

Viewing Size
478.656 (H) × 478.656 (V) mm

Screen-to-Body Ratio
?90%

Viewing Angle
178° (H) / 178° (V)

Display Mode
Horizontal

Pixel Pitch
0.2493 mm × 0.241 mm

Pixels Per Inch
102.7

Resolution
1920 (H) × 1080 (V)

Refresh Rate
100 Hz

Display Color
16.7M colors

Color Gamut
72% NTSC

Brightness
250 cd/m2 (max)

Contrast Ratio
1000:1

Response Time
OD 5 ms

Lifespan
30,000 hrs

Surface Treatment
Haze 25%, 3H

Low Blue Light
Software blue light protection

Device Ports
Input Port
1 × HDMI 1.4 (1920 × 1080@100 Hz), 1 × VGA

Output Port
1 × Audio out

Speaker
2 × 1 W

Power & Environmental Conditions
Power Supply
12 VDC, 2 A

Power Consumption
15 W (basic), 17 W (typ.), 19 W (max)

Standby Power Consumption
0.5 W

Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity
10%–85% (RH)

Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity
5%–90% (RH)

General
Inclined Angle
-5° / 15°

Product Dimensions
492.7 mm × 284.0 mm × 39.5 mm (19.40" × 11.18" × 1.56") (W × H × D), without wall-mount bracket

Package Size
598 mm × 366mm × 99 mm (23.54" × 14.41" × 3.90") (W × H × D)

Unilateral Splicing
U/L/R/D: 2.2 mm/2.2 mm/2.2 mm/15.2 mm

Net Weight
2.18 kg (4.81 lb)

Gross Weight
3.12 kg (6.88 lb)

Casing Color
Black

Control Mode
Five-button

Status Indicator Light
Yes

Wall Mount VESA
75 mm × 75 mm (2.95" × 2.95")

Accessory
Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc.

Optional Accessory
Wall mount

Certification
Certifications
CE EMC, CE LVD, CE ERP
