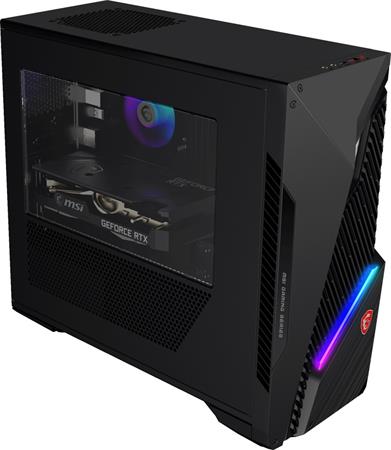

MSI MAG Infinite S3 14NUD7-1432EU/i7-14700F/16GB/1TB SSD/RTX 4060 Ti Ventus 2X, 8GB OC/BT/WiFi/Win 11 home

MKT Spec MAG Infinite S3 14NUD7-1432EU
Website Name MAG Infinite S3 14th
Color ID1/Black-Black-Black
System/Barebone System
Processor
CPU Core Name RAPTOR LAKE REFRESH
CPU Socket LGA-1700pin
CPU Number Intel Core i7 Processor 14700F
CPU Clock 2.1GHz
CPU Cores 20
TDP 65W
CPU Cooler Air cooling 65W
Max Turbo Frequency up to 5.40 GHz
Cache 33 MB Intel® Smart Cache
Threads 28
Chipset
Chipsets H610
MB Ori. MKT Name PRO H610M-G
Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 4060 Ti 8G
GPU1 Number RTX 4060 Ti VENTUS 2X
GPU1 VRAM Size 8G
VGA I/O Port HDMIx1, Display Portx3
VGA MKT Name GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OC
Memory
Memory Size 16GB(8GB*2)
Memory Type DDR5 SDRAM
Memory Speed 2800(5600)MHz
Module Type U-DIMM
Memory Slot 2
Memory Slot(Total) 2
Memory Slot(Free) 0
Max Capacity Max 64GB
Storage
SSD Interface PCIe GEN3x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Config 1TB*1
SSD Size 1TB
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD1 Size N/A
HDD1 RPM N/A
ODD(Type) N/A
ODD Height N/A
ODD Type N/A
mSATA slots N/A
mSATA slots(Total) NA
mSATA slots(Free) 0
M.2 slots 1
M.2 slots(Total) 1
M.2 slots(Free) 0
2.5" Drive Bays N/A
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free) 2
3.5" Drive Bays N/A
3.5" Drive Bays(Total) 1
3.5" Drive Bays(Free) 1
Communications
LAN Intel I219-V
WLAN INTEL/AX210.NGWG.NV
WLAN Version 802.11a/b/g/n/ac/ax 2x2+BT
BT Version 5,2
VESA
VESA size NA
Audio
Audio Chipset Realtek ALC897
Audio Type 7.1 Channel HD Audio
Speaker NA
I/O Ports (Front)
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
USB 3.2 Gen 2 Type C NA
USB 3.2 Gen 2 Type A NA
USB 3.2 Gen 1 Type C 1
USB 3.2 Gen 1 Type A 1
USB 2.0 Type A NA
USB 2.0 Type C NA
Thunderbolt NA
Audio Mic-in 1
Audio Headphone-out 1
Audio Headphone-out (HiFi/SPDIF) NA
Mic-in/Headphone-out combo NA
Card Reader NA
I/O Ports (Rear)
USB 3.2 Gen 2x2 Type C (R) NA
USB 3.2 Gen 2x2 Type A (R) NA
USB 3.2 Gen 2 Type C (R) NA
USB 3.2 Gen 2 Type A (R) NA
USB 3.2 Gen 1 Type C (R) NA
USB 3.2 Gen 1 Type A (R) 2
USB 2.0 Type C (R) NA
USB 2.0 Type A (R) 4
Thunderbolt (R) NA
RJ45 1
WiFi Antenna 2
Card Reader (R) NA
VGA out NA
VR-Link NA
HDMI out NA
DP out 1x (v1.4)
mini DP in NA
mini DP out NA
PS/2 1
COM Port NA
DVI-D out NA
Audio jack 3
S/PDIF NA
Flash BIOS Button NA
Power
Power 500W
Power Certification 80PLUS BRONZE
Formfactor ATX
Type POWER SUPPLY
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA
Operating Systems Windows 11 Home
Pallet
W/O KB Pallet Q'ty (by air) 12
W/O KB Pallet Q'ty (by sea) 24
W/KB Pallet Q'ty (by air) 12
W/KB Pallet Q'ty (by sea) 24
Dimension&Weight
Product Dimension (WxDxH) (mm) 173.8 x 446.97 x 407.17
Product Dimension (WxDxH) (inch) 6.84 x 17.6 x 16.03
Inside Carton Dimension (WxDxH) (mm) N/A
Inside Carton Dimension (WxDxH) (inch) N/A
Outer Carton Dimension Standard (WxDxH) (mm) 585 x 317 x 510
Outer Carton Dimension Standard (WxDxH) (inch) 23.03 x 12.48 x 20.08
Outer Carton Dimension with bundle item (WxDxH) (mm) 585 x 317 x 510
Outer Carton Dimension with bundle item (WxDxH) (inch) 23.03 x 12.48 x 20.08
Weight (Net kg) 7,73
Net Weight (lbs) 17,04
Weight (Gross kg) 10,44
Gross Weight (lbs) 23,02
Liter 32
Pint 67,63
Noise Level
Idle mode 28
Full loading mode 38
Warranty
Warranty 24months
SW Feature - 3rd Party Royalty
Nahimic Sound effect N/A
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Accessories
AC Adaptor N/A
Power Cord 1
Warranty Card N/A
Quick Guide 2
User Manual N/A
VESA Mount kit N/A
Keyboard N/A
Keyboard Interface N/A
Mouse N/A
Mouse Interface N/A
Model Info
Series Name Gaming
Segment Name Infinite
Segment Name2 MAG Infinite S3
Segment Name3 MAG Infinite S3 14NUD7
Barcode Info
EAN 4711377157230
