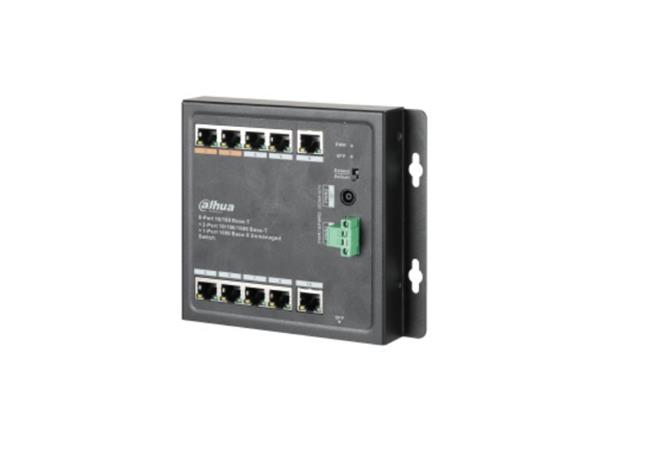

11-Port Switch with 8-Port PoE

Layer-two Unmanaged PoE Switch
Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X standards
MAC auto study and aging, MAC address list capacity is 8K
Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 and 2 support Hi-PoE 60W power supply
Adopts metal structure
High protection grade, supports common mode 4KV, differential mode 2KV
Supports DC 48V-DC 57V power supply and dual power backup
Supports -30°C~65°C operating temperature
Supports two types of transmission modes, which are Default and Extend.Default mode is standard Ethernet mode with transmission bandwidth of 100 Mbps and supports transmission distance up to 100M via CAT6.Extend mode is long distance transmission mode with transmission bandwidth of 10 Mbps and supports transmission distance up to 250M via CAT6. This function only supports port1-4

Technical Speci?cation

Model

DH-PFS3111-8ET-96-F

Ethernet Port

8*RJ45 10/100M (PoE)

2*RJ45 10/100/1000M (uplink)

1*SFP 1000M (uplink)

PoE Power Consumption

Port1?60W, Port2?60W, Port3~8?30W,

total power?96W

PoE Protocol

IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity

13.6Gbps

Packet Forwarding Rate

5.65Mpps

Packet Buffer Memory

2Mb

Application Humidity

10%~90%

Power

DC 48-57V

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

Working Temperature

-30°C~65°C

Dimension(W×D×H)

158mm x130mm x25mm

Accessories

Model

PFT3950

1.25G 850nm,500m,LC, Multi-mode

PFT3960

1.25G 1310/1550nm,20km,LC, Single-mode

PFT3970

1.25G 1550/1310nm,20km,LC, Single-mode
