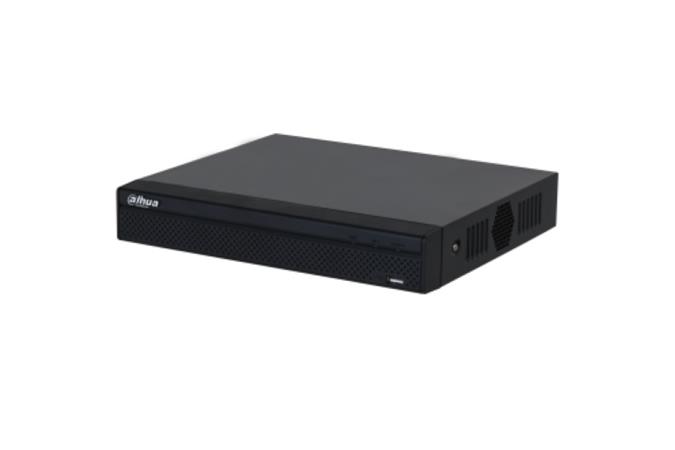

XVR5232AN-4KL-I3
32 kanálů Penta-brid 4K-N/5MP 1U 2HDD Digitální videorekordér WizSense

komprese videa s duálním streamem H.265+/H.265.

Podporuje 32kanálové kódování AI.

Podporuje HDCVI/AHD/TVI/CVBS/IP video vstupy.

Max 32 kanálů vstupy IP kamery, každý kanál až 8MP; 128 Mb/s příchozí šířka pásma.

Až 12 kanálů video stream (analogový kanál) perimetr ochrana.

Až 32 kanálů video stream (analogový kanál) SMD plus.

Až 6 kanály video stream (analogový kanál) lidská tvář uznání.

IoT & POS funkce.

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 6 channels, 10 IVS for each channel
General Model: 12 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

6 channels (up to 12 face images/s each channel) )

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

6 channels

SMD Plus

SMD Plus by Recorder

32 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 32 channels of IPC access
32 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

Encoding Capacity

Main stream:
4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps);
Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display

1/4/8/9/16/25/36

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Samsung

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

IOS; Android

Interoperability

ONVIF 21.12; CGI

Browser

Chrome, IE9 or later, Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; video loss; tampering; local alarm

Anomaly Alarm

No disk; storage error; disk full; camera offline; IP conflict; MAC conflict

Intelligent Alarm

Face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

Ports

TV Output

1 channel

Audio Input

1-channel RCA
32-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.

RS-485

1 port, for PTZ control

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

DC 12V, 5A

Power Consumption

32 W (without HDD)

Net Weight

2.50 kg (5.52 lb)

Gross Weight

4.10 kg (9.04 lb)

Product Dimensions

375.0 mm × 334.4 mm × 53.0 mm (14.76'' × 13.17'' × 2.09'') (W × D × H)

Packaging Dimensions

449.0 mm × 170.0 mm × 421.0 mm (17.68'' × 6.70'' × 16.58'') (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Installation

Rack or desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
