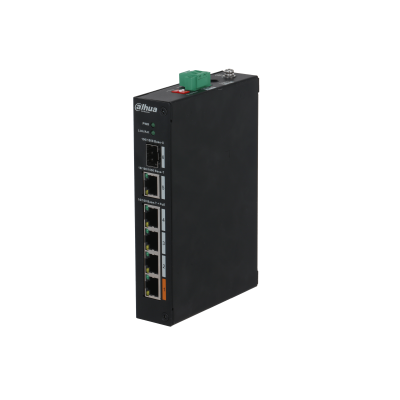

4-portový PoE přepínač (neřízený)

Osmipinový napájecí zdroj PoE

Inteligentní PoE

Hi-PoE 60 W (oranžový port)

Hlídací pes PoE

250 m dálkový přenos PoE

Široká provozní teplota: –30 °C až +65 °C (–22 °F až +149 °F)

Hardware

Ethernet Port

4

Optical Port

1

Ethernet Port Speed

100 Mbps

Data Transmission Port

Port 1–4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5: 1 × RJ-45 10/100/1000 Mbps (Uplink)
Port 6: 1 × SFP 100/1000 Mbps (Uplink)

Power Supply

53 VDC

Operaing Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Idling: 2.5 W
Full load: 60 W

Performance

Capacity

6.80 Gbps

Packet Forwarding Rate

3.57 Mpps

Packet Buffer Memory

1 Mbit

MAC Table Size

8K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

PoE

PoE Standard

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power

60 W

Power Consumption Management

Yes

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

250 m long distance PoE transmission

General

Statics Protection

Air discharge: 15 kV
Contact discharge: 8 kV

Thunder-proof

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.45 kg (0.99 lb)

Gross Weight

1.10 kg (2.43 lb)

Product Dimensions

150 mm × 100 mm × 30 mm (5.91" × 3.94" × 1.18") (L × W × H)

Packing Dimensions

Packing box: 270 mm × 240 mm × 75 mm (10.63" × 9.45" × 2.95") (L × W × H)
Protective box: 544 mm × 253 mm × 331 mm (21.42" × 9.96" × 13.03") (L × W × H)

Transmission Performance:

Switch power supply voltage 53 V.

CAT5E/CAT6. Max. DC resistance  10?/100 m

Cable (m)

Load Capacity (W)

Bandwidth (Mbps)

IEEE802.3bt 90 W
