Chipset: AMD B650

Rozměrový formát: ATX Form Factor; (30.5cm x 24.4cm)
Podpora pro procesory: AMD Ryzen 7000 Series Processors

Patice procesoru: AM5

Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu: non-ECC, XMP

Grafická karta: (na základě procesoru)

1 x DisplayPort 1.4, maximální rozlišení 3840x2160@144 Hz
1 x HDMI 2.1 port, maximální rozlišení 4096x2160@60 Hz

Zvuková karta: Realtek Audio CODEC

2/4/5.1/7.1-channel

Síťová karta:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax
Bluetooth 5.2

Rozšiřující sloty:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
RAID řadič: RAID 0, RAID 1, and RAID 10

SATA: 4 x SATA 6Gb/s connectors
M.2: 3 x M.2 Socket 3 connectors

USB:

Interní:
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers

Externí:
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports

Interní porty:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

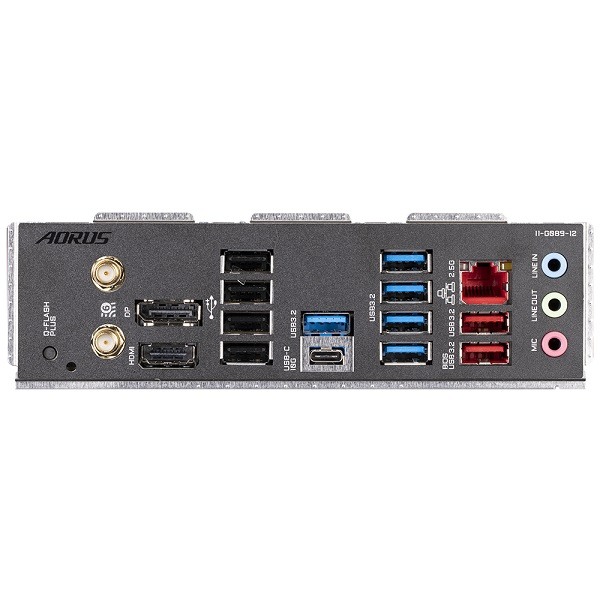

Externí porty:

1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
