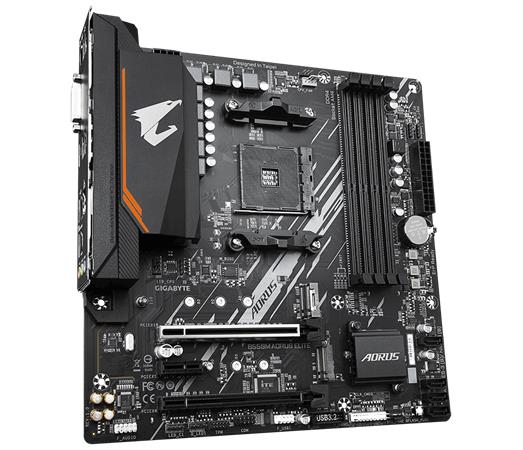

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP,  RGB FUSION 2.0, Q-Flash Plus

Supports 3rd Gen AMD Ryzen™ Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
GIGABYTE Exclusive 8118 Gaming GbE LAN
Rear HDMI & DVI Support
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

CPU
AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.)

Chipset
AMD B550

Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots
1? x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode

Storage Interface
1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel

Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm

Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
