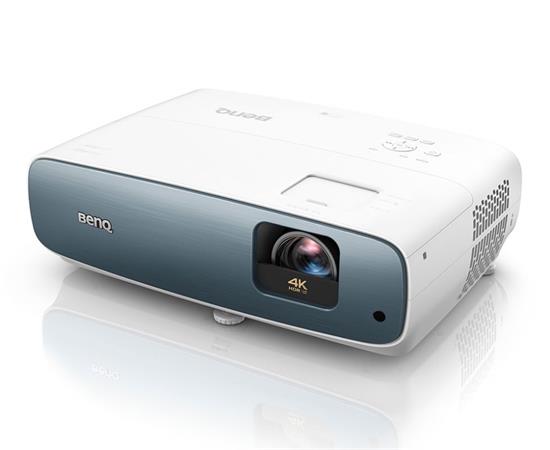

4K Home Entertainment Projector for Sports Fans with HDR-PRO, Dynamic Iris and 3000 ANSI Lumens Brightness
   4K UHD resolution with 8.3 million pixels and HDR-PRO™ technology
   Reaches 98% of Rec. 709 Color Space for accurate colors
   Specially designed Sports Mode for full immersion


Main Specifications
Resolution   4K UHD (3840 x 2160)
Brightness (ANSI lumens)   3000 lm
Contrast Ratio (FOFO)*    30,000:1 (Dynamic Iris)
Speaker    Chamber Speaker 5W x 2

All Specifications
Display
Projection System    DLP
Resolution    4K UHD (3840 x 2160)
Resolution Support    VGA (640 x 480) to 4K UHD (3840 x 2160)
Brightness (ANSI lumens)    3000 lm
Contrast Ratio (FOFO)*    30,000:1 (Dynamic Iris)
Display Color    30 Bits (1.07 billion colors)
Native Aspect Ratio    Native 16:9 (6 aspect ratio selectable)
Light Source    Lamp
Light Source Wattage   245W
Light Source Life*    Normal 4,000 hours, Eco 10,000 hours, SmartEco 15,000 hours

Optical
Throw Ratio   1.13 - 1.47 (100" @ 8.2 feet/ 2.5 m)
Zoom Ratio   1.3x
Keystone Adjustment    1D, (Auto) Vertical ± 30 degrees
Projection Offset    100%
Clear Image Size (Diagonal)   40" ~ 200"
Image Size    30" ~ 300"
Horizontal Frequency   15K-135K Hz
Vertical Scan Rate    23-120 Hz

Picture Mode    Bright / Living Room / Cinema/ Sports / Silence / (3D)* / User 1 / HDR / HLG
Color Wheel Segment    4 segment (RGBW)
Color Wheel Speed    2D: 96Hz; 100Hz; 120Hz,   3D: 120Hz
Rec.709 Coverage   98%

Audio
Speaker    Chamber Speaker 5W x 2

Interface
HDMI   x2 (HDMI 2.0b/HDCP2.2)
USB Type A   x1 (5V/2.5A power) ,  x1 (Media Reader, FW Download)
USB Type mini B   x1 (FW Download, Service)
Audio out (3.5mm Mini Jack)   x1
RS232 (DB-9pin)    x1
DC 12V Trigger (3.5mm Jack)   x1
IR Receiver    x2 (Front/Top)
Security Bar    Security Bar / Kensington anti-theft lock slot

Special Feature
HDR    Yes (HDR10, HLG)
Motion Enhancer (MEMC)    Yes
CinemaMaster Video +    Yes
CinemaMaster Audio+2    Yes

Compatibility
HDTV Compatibility    720p 50/60Hz, 1080i 50/60Hz, 1080p 24/25/30/50/60Hz, 2160p 23/24/25/30/60Hz
3D Compatibility    Frame Packing: Up to 1080p/24Hz, Side by Side: Up to 1080p/60Hz, Top Bottom: Up to 1080p/60Hz

Power
Power Supply   VAC 100 ~ 240 (50/60Hz)
Typical Power Consumption   Max 350W, Normal 340W, Eco 280W
Standby Power Consumption   0.5 W Max. at 100 ~ 240VAC
Acoustic Noise (Typ./Eco.)   32/30dBA (Silence mode)
Operating Temperature   0~40 °C

Dimension and Weight
Dimensions (W x H x D)(mm)    380 x 127 x 263
Net Weight (Kg/ lbs)   4.2 kg / 9.2 lbs

Accessories (Standard)
Remote Control w/ Battery   x1 RCV017 (5J.JKC06.001)
Power Cord (by region)   x1 (3m)
User Manual CD   Yes (27L)
Quick Start Guide    Yes (21L)
Warranty Card (by region)    Yes

Accessories (Optional)
Spare Lamp Kit    Optional (5J.JKC05.001)
3D Glasses    Optional

OSD
OSD Language    Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)

*In 3D Mode: Resolution is 1920x1080 in 3D Mode.
