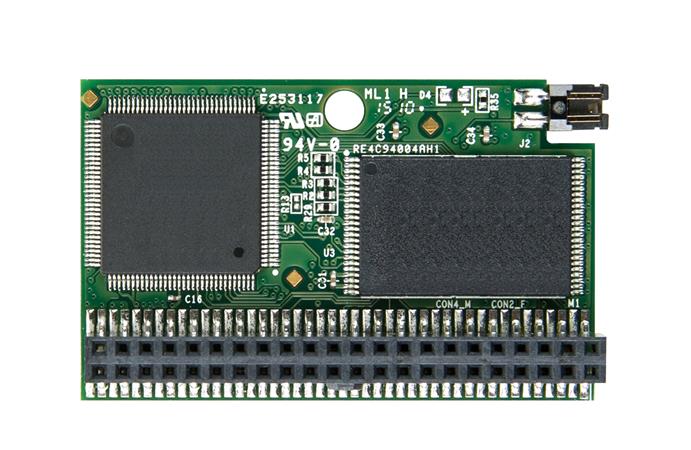

Transcend 512MB PATA (IDE) PTM820 FLASH Module (44 Pin HORIZONTAL), SLC

Transcend's 44-pin PATA PTM820 Flash Module can be inserted directly to the PATA (IDE) interface of a motherboard to replace conventional 2.5" hard disk drives. Ideal for use as bootable drives, the 44-pin PATA PTM820 Flash Module is an easy solution for integrating SSD storage technology into laptop-based legacy systems.

Features:
RoHS compliant
Support Security command
Support S.M.A.R.T (Self-defined)
Fully compatible with devices and OS that support the IDE standard (pitch = 2.00mm)
Built-in ECC function assures high reliability of data transfer
Supports up to Ultra DMA Mode 4
Supports PIO Mode 6
SLC NAND Flash

Specifications:
Interface (connector): IDE 44P
Form Factor: IDE Flash Module
Flash Type: SLC
Capacity(MB): 512MB
Max. Performance (Vary by density)
- Read: 21MB/s
- Write: 23MB/s
Op. Voltage(V): 3.3V±5% or 5V±10%
Power Consumption (W): 0.45W
Op. Temp.(?): 0?~70?
Storage Temp.(?): -40?~85?
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G). 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency)
Dimensions(mm): 46.0mm × 28.0mm × 6.0mm (without housing)
MTBF(hours): 1,000,000 hours
